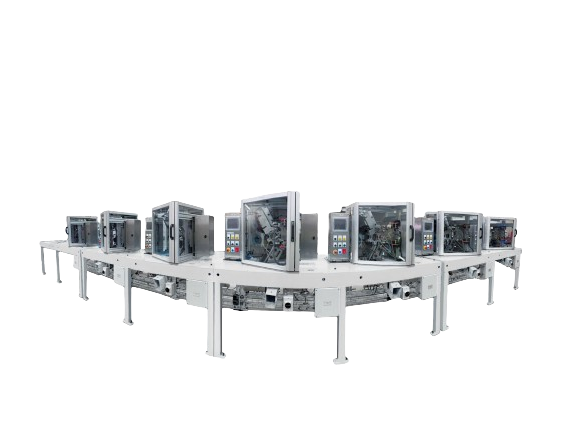

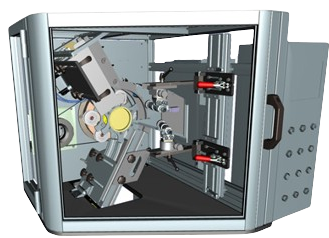

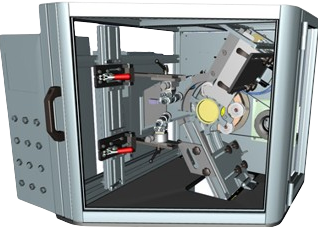

reformat™ Spray Machine

reformat™ Spray Machine

The reformat™ Spray Machine allows faster presentation of cans without reducing the spray window because the spray window, or dwell period, is not dependent on a mechanical method of indexing. Consequently the spray window can always be the optimum length to ensure perfect and consistent coating of the can at any run speed.

Benefits

01

BENEFITS

Reduced energy consumption – consumes 75% less energy than other models

Reduced footprint

Reduced down time – quicker to clean

Increased speed – able to reach higher speeds compared to previous mechanical spray machines

Improvements in process control – able to modulate speed

Designed to minimise tool usage

Can be run at very low speeds to keep the guns active during impeding line build back or low line infeed level

Fully adjustable machine designed for quick height & diameter change overs

Technical Details

02

TECHNICAL DETAILS

Min. trimmed Can height:

88mm

Max. trimmed Can height:

220mm

Min. Can diameter:

202(52mm)

Max. Can diameter:

211(66mm)

Main Motor:

9.3kW

Press dimensions:

Height: 4000mm Width: 4700mm Depth: 2750mm

Spinner Motor:

0.37kW

Speed:

Up to 400cpm

Weight:

Approx. 3200kg for 2 machines (inc straddle frame)

Air Supply:

90PSI

Spray:

Nordson Spray Equipment

Drive:

Servo Motor and Gearbox

Guards:

Complete safety guarding, electronically interlocked to the control system

Additional Features:

Mis-spray Detection (Nordson iTrax® Spray Monitor) or Sencon Nordson Spray Pressure Control Nordson Temperature Control (TCU) Unit Nordson iTrax® Spray Controller (Model SC) Nordson iTrax® Pressure Controller (Model PRx)
