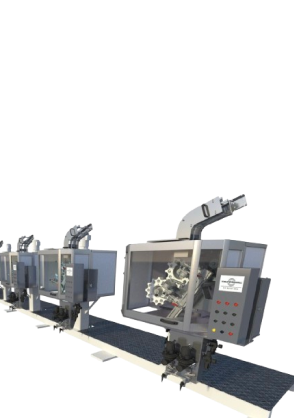

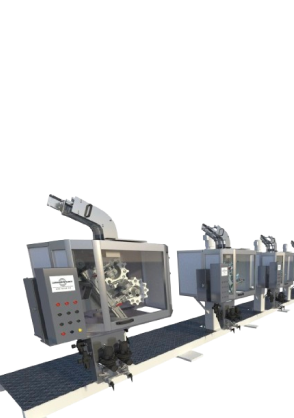

Lacquer Spray Machine
The CMB Engineering 3200 Lacquer Spray Machine utilises Nordson® airless spray technology to precisely apply a coating uniformly to the interior of metal cans. Liquid coating material is accurately sprayed onto the interior can surface using precision nozzles and high-speed, repeatable spray guns. This profiling lacquer machine provides consistent results, can to can, and durable, low maintenance operation. Available in either single or dual turret format, the machine turrets are indexed by proprietary index units. These profiling lacquer machines have a twin dwell, high-speed, globoidal mechanism.
Benefits
01
BENEFITS
Speeds of up to 350 cpm
Flexibility in number of machines
Utilises Nordson® airless spray technology to precisely apply a coating uniformly to the interior of metal cans
Precision nozzles and high-speed, repeatable spray guns, provide consistent results
Designed to allow quick changeovers
Fully adjustable machine, for convenient can height and diameter changes
Machines can be mounted on different base types to suit your conveyance system
Available in either single or dual turret format
Dual turret design provides the option to discharge directly onto a vacuum conveyor to reduce can handling changeover time
Nordson® system Integration available, from iTrax® to PRx, providing in depth spray process monitoring/reporting, configured to store can recipes
Technical Details
02
TECHNICAL DETAILS
Min. trimmed Can height:
88mm
Max. trimmed Can height:
220mm
Min. Can diameter:
202(53mm)
Max. Can diameter:
307(84mm) *
Drive:
Motor/gearbox + Independent Spinner Drive
Turret:
Single or Dual
Main Motor:
3kW
Spinner Motor:
0.37kW
Speed:
Up to 350cpm
Weight:
Approx. 3200kg for 2 machines (inc pedestal frame)
Air Supply:
90PSI
Spray:
Nordson Spray Equipment
Guards:
Complete safety guarding, electronically interlocked to the control system
Additional Features:
Dome Spray Mis-spray Detection (Nordson iTrax® Spray Monitor) or Sencon Nordson Spray Pressure Control Nordson Temperature Control (TCU) Unit Nordson iTrax® Spray Controller (Model SC) Nordson iTrax® Pressure Controller (Model PRx) Ink dot marking on discharge turret / infeed track work
