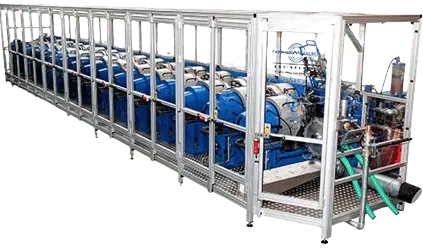

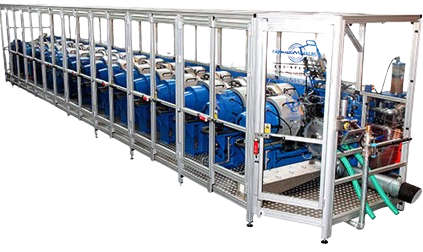

Die Necker
The die necker machine is a multi-stage die necking machine capable of producing cans at speeds of up to 3400 cans per minute.
Benefits
01
BENEFITS
Reduced changeover and set up time through advanced machine design
Automatic centralised grease lubrication
Works at speeds of up to 3400 cpm
Reduced maintenance and downtime due to improved machine dynamics
12-head, 10-head and 8-head variants available to suit your production output requirements
Acoustic Reduction Guarding
Technical Details
02
TECHNICAL DETAILS
Min. trimmed Can height:
88mm
Max. trimmed Can height:
220mm
Can diameters:
53-66mm (202-211) *
Speed:
Up to 3400cpm
Each Main motor:
18.87kW
Each Main vacuum fan:
17.4kW
Waxer vacuum pump:
11kW
Discharge blower:
1.5kW
Vacuum:
8-10In/HG @30ACFM
Air consumption:
Each necking stage - 55SCFM Light Tester - 10SCFM IBR - 30SCFM
Weight:
Each base - 2000kg Intermediate base - 2300kg
Guards:
Complete safety guarding, electronically interlocked to the control system.
Additional Features:
Minimal lubrication requirements. Automatic centralized grease lubrication. Non-metallic gears, eliminating the requirement for oil lubrication. Innovative anti-rotation feature, extended life of Pusher rams. 1.75” pusher stroke, allowing the tooling to incorporate increased tooling length, giving greater can neck-to-body concentricity. Minimal lubrication requirements. Automatic centralized grease lubrication. Non-metallic gears, eliminating the requirement for oil lubrication. Innovative anti-rotation feature, extended life of Pusher rams. 1.75” pusher stroke, allowing the tooling to incorporate increased tooling length, giving greater can neck-to-body concentricity.
View More

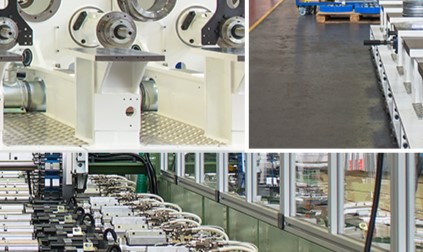

Die Necker Gallery
