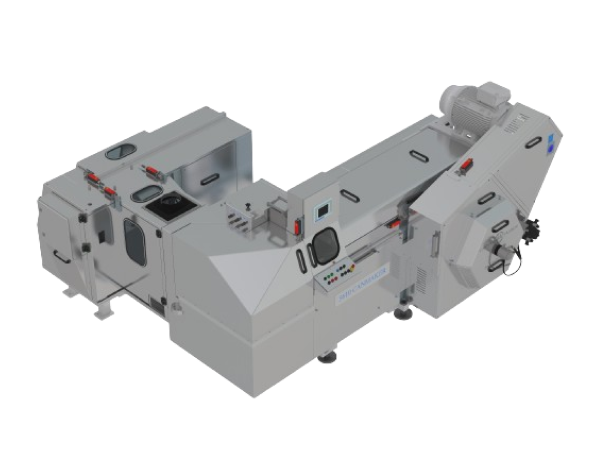

Canmaker

All the benefits of the Bodymaker and Trimmer, seamlessly combined into one convenient and reliable package. Housed in one enclosure for convenience, ease of maintenance and safety.

Benefits

01

BENEFITS

All the benefits of the CMbE Bodymaker and Trimmer, seamlessly combined into one convenient and reliable package

Housed in one enclosure for convenience, ease of maintenance and safety

Specially designed conveyor between Bodymaker and Trimmer for quick changeovers

Dual stroke facility offers enhanced flexibility for handling different can sizes

Precise and accurate trimming

High-speed bodymaking and trimming from one fully integrated machine

Machines can be tailored to bespoke Cup requirements

Technical Details

02

TECHNICAL DETAILS

Stroke:

22", 24.5", 26", 30"

Max. untrimmed can height:

159mm, *189mm, 200mm, *244mm

Max. can diameter:

52-73mm (202-300), 52-84mm (202-307), 52-73mm (202-300), 52-73mm (202-300)

Main Motor:

Bodymaker = 55kW (74hp) Trimmer = 2.2kW (3hp)

Air:

Supply 6.2 bar (90psi) min, Consumption 3.3m/min (115cfm) at 6.2 bar (90psi)

Vacuum:

Trimmer: 0.6 bar (22" at HG), Conveyor: 24m bar (10" at WG)

Typical weight:

Canmaker: 13,400Kg (29,500lbs) Control cabinet: 526Kg (1160lbs) Hydraulic powerpack: 960Kg (2120lbs)

Guard:

Complete safety guarding, electronically interlocked to the control system. Fully conforms to the requirements of the European Machinery Safety Directive
